S3 CORS is dumb. Here’s how to ignore it!

Introduction

Today we’re going to talk about AWS S3’s (lack of) Cross-Origin Resource Sharing (CORS) headers and why the whole thing is silly in the context of S3.

This post is going to first explain a bit about what CORS is and what theoretical benefit it it might have for S3 if, you know, it worked. After that, I’ll go into a technical explanation of why it totally doesn’t actually work for S3, including walking through some code to break it.

What is CORS?

Before we get into the S3 side of things, let me quickly explain what CORS is. There’s dozens of explanations online, but many of them get bogged down in technical details immediately. I’ll try to explain it by talking about the specific problem it solves, and the high level details of how it solves it. I won’t go too far into the weeds since only a general understanding is needed to understand the rest of the blog post.

At a high level, CORS is a security feature which operates in the context of an HTTP request made by a web browser. Every modern browser implements CORS. Typically, other HTTP clients (such as cURL) do not.

Let’s talk about the problem CORS solves by using the cliché example of a bank. Assume the user is logged into their bank’s website and can view their account information at https://bankwebsite.example/user/my-accounts. When the user visits that URL directly, the server is able to recognize them and serve up their account numbers because the browser sends along a Cookie identifying the user securely. While still logged into their bank, the user then visits the malicious site https://take.mallorys-evil.test, which includes the following JavaScript code:

fetch('https://bankwebsite.example/user/my-accounts', {credentials: 'include'})
  .then((response) => {
    exfiltrateData(response);
  });

Naively, that seems like it could result in Mallory getting access to your bank account number. After all, you’re logged into your bank in the same web browser, and the entire web browser has one big shared Cookie jar. Fortunately, CORS is here to save the day! All Cross-Origin requests made via JavaScript are blocked by default due to CORS. “Origin” here means the domain name as sent in the Origin header, in this case https://take.mallorys-evil.test. If the Origin on the request doesn’t exactly match the origin of request’s target, it will be blocked by default, and in this case they clearly do not match; https://take.mallorys-evil.test ≠ https://bankwebsite.example.

Note that all JavaScript-initiated requests, even those without credentials, are blocked. Other types of requests, like <img src="https://bankwebsite.example/logo.png" /> (which results in a browser-initiated request) are not blocked, but JavaScript’s ability to manipulate these tags is restricted.

What if the bank above moves to a hip new SPA architecture and the new https://bankwebsite.example uses Ajax to load user information from https://api.bankwebsite.example/user? Clearly those are different origins, so CORS will deny requests to the API now. How can the bank let the browser know that it really doesn’t mind if https://bankwebsite.example makes requests to that subdomain? That’s where CORS headers come in! In this specific example, https://api.bankwebsite.example’s server would probably want to add the following headers to its responses:

Access-Control-Allow-Origin: https://bankwebsite.example
Access-Control-Allow-Methods: POST, GET, OPTIONS
Access-Control-Allow-Headers: Content-Type
Access-Control-Allow-Credentials: true

This set of headers lets the browser know to allow JavaScript running on https://bankwebsite.example to make requests to https://api.bankwebsite.example, including with credentials (cookies) set.

Now, there’s more to CORS than that (namely preflight requests, other special cases beyond images, etc), but the above should be enough background for the purpose of this post.

What’s S3’s CORS setup?

By default, S3 provides no CORS headers, meaning all requests to the S3 API and objects in S3 buckets from JavaScript are blocked.

The JavaScript SDK’s documentation notes that “CORS needs to be configured on the Amazon S3 bucket” to use the SDK, and walks you through setting it up.

The more detailed CORS documentation repeats this information.

Put more succinctly, S3 allows users to apply CORS headers on a per-bucket basis, but does not provide headers to allow requests that don’t target a bucket (e.g. ListBuckets).

However, as you might be able to guess from the title of this post, the (lack of) CORS headers can be easily bypassed and shouldn’t ever be relied on for security. We’ll get to that bit soon, I promise!

When might S3 CORS matter?

Let’s look at 2 (2️⃣ ) specific cases where S3’s CORS headers (or lack thereof) might matter.

Note that neither of these cases is typical, and in reality there are very few good reasons to make S3 API calls directly from a user’s browser.

Client-side Webpage Using S3

Let’s say you want to create an entirely client-side website which allows the user to store files in S3 in their account.

You could have the user enter their AWS access and secret keys and then use them to make requests from within their browser. This is simple to reason about, and more secure than any similar server-side solution. This, by the way, aligns fairly well with the ideals of unhosted.

Unfortunately for you, CORS will block any requests the browser makes to list or create buckets, even if the user enters correct credentials. Your dastardly plan to provide a secure serverless experience has been foiled!

Access Public Data in S3

There are various public datasets on S3, and some may be useful to browse and/or manipulate from client-side JavaScript.

By default, buckets do not have CORS headers though, so in most cases you will be foiled by bad defaults.

Breaking S3 CORS

CORS, no matter what, never blocks a request from the same origin. That is to say, if JavaScript is running on https://s3.amazonaws.com, no request to https://s3.amazonaws.com will ever be blocked. If only there was a way to run arbitrary JavaScript on that origin… like if they let us upload an html file to https://s3.amazonaws.com/my-bucket-name/my-file.html! With that, it’s easy to see why CORS on S3 doesn’t work. Any origin that allows user-submitted arbitrary html content absolutely cannot expect any combination of CORS headers to be effective.

For the sake of having a concrete example, let’s say that we wish to build a simple client-side webpage that lets a user enter their AWS credentials to store content created on the webpage in their S3 bucket.

This falls under the first reason mentioned above that S3’s missing CORS headers may matter. In order to provide a reasonable UX to the user, this webpage will likely want to list their buckets, optionally offer to create one, and be able to upload files to an existing bucket even if it has no CORS configuration.

To keep this blog post short, we’ll just write the bucket-lister portion, but hopefully the above example use-case makes sense.

A first swing at naively writing this might look like the following (using vuejs):

https://euank.com/.../bucket_lister.js:

var app = new Vue({
  el: '#app',
  data: {
    accessKey: '',
    secretKey: '',
    errorText: '',
    // ... some code omitted
  },
  methods: {
    listBuckets: function() {
      // ...
      const creds = new AWS.Credentials({
        accessKeyId: this.accessKey,
        secretAccessKey: this.secretKey,
      });
      AWS.config.update({region: 'us-east-1', credentials: creds});
      const s3 = new AWS.S3();
      s3.listBuckets().promise()
      .then((data) => {
        this.buckets = data.Buckets;
      })
      .catch((err) => {
        this.errorText = err.toString();
      });
    },
  },
});

This looks like reasonable code, but if we run it here, you’ll see that it doesn’t work.

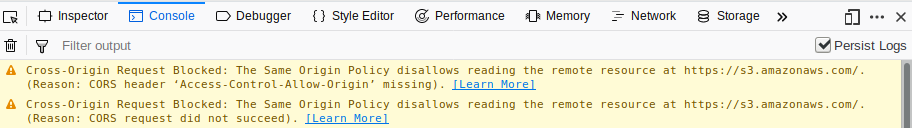

The error it provides is a rather generic “NetworkError”, but if you look at the browser console, it goes into more detail in explaining that CORS blocked it.

Image of CORS errors in browser console

What if we upload exactly the same code into an S3 bucket? I’ve gone ahead and put the exact same bucket_lister.html in a bucket named euank-com-examples, available here. As you can see, the same code now works!

This is one way to defeat S3’s CORS: just host your stuff on S3 and have users interact with it there. However, I’d like to do better. I’d much prefer users visit my preferred origin (in this example euank.com), not a strange looking s3.amazonaws.com URL.

Fear not, for combining the above information with an iframe will let us defeat CORS from any origin!

This trick relies on a few nifty facts:

  1. CORS does not block iframes.
  2. The postMessage API has only opt-in origin checks.
  3. The origin which embeds an iframe does not affect its CORS same-origin status in the slightest.

Putting all these together, it seems clear that if we can get a page on the same origin as the S3 APIs which accepts postMessage requests to make API calls on our true origin’s behalf, we can trivially work around CORS. As luck would have it, hosting arbitrary HTML on the same origin as S3 is one of S3’s key features!

Our second version of the above code is now split into more files. Here’s the important snippets:

https://s3.amazonaws.com/.../proxy.html:

<script src="https://sdk.amazonaws.com/js/aws-sdk-2.349.0.min.js"></script>
<script>
    // 'message' events come from the parent window on euank.com
    window.addEventListener('message', function(event) {
        const result = {};
        const creds = new AWS.Credentials(event.data.creds);
        AWS.config.update({region: 'us-east-1', credentials: creds});
        const s3 = new AWS.S3();
        s3.listBuckets().promise()
        .then((data) => {
            result.error = false;
            result.buckets = data.Buckets;
            result.listingBuckets = false;
            // the postMessage Web API lets us respond to euank.com as well
            event.source.postMessage(result, event.origin);
        })
        .catch((err) => {
            result.listingBuckets = false;
            result.errorText = err.toString();
            result.error = true;
            event.source.postMessage(result, event.origin);
        });
    }, false);
</script>
</html>

https://euank.com/.../bucket_lister.html:

<iframe src="https://s3.amazonaws.com/euank-com-examples/cors-pfff/v2/proxy.html" v-on:load="iframeLoaded" style="display:none;"></iframe>

https://euank.com/.../bucket_lister.js:

var app = new Vue({
  el: '#app',
  data: {
    iframe: {
      loaded: false,
    },
    accessKey: '',
    secretKey: '',
    // ...
  },
  methods: {
    iframeLoaded: function() {
      this.iframe.loaded = true;
      window.addEventListener('message', (ev) => {
        // copy the iframe results back into our vue data object
        Object.assign(this, ev.data);
      }, false);
    },
    listBuckets: function() {
      if (!this.iframe.loaded) {
        this.error = true;
        this.errorText = "iframe still loading; please try again shortly";
        return;
      }
      // ...
      // Kindly ask the iframe to list buckets using the provided credentials
      const ifr = document.querySelector("iframe");
      ifr.contentWindow.postMessage({
        creds: {
          accessKeyId: this.accessKey,
          secretAccessKey: this.secretKey,
        },
      }, '*');
    },
  },
});

With these changes, you can go to a version hosted on the euank.com origin here, and this time it should work!

Note that we have not configured any CORS headers anywhere, but by taking advantage of being able to host arbitrary pages on the target origin, we can still ignore any and all CORS headers with ease.

There are many ways that this solution could be further improved (such as by not hard-coding proxy.html’s code to make only one API call), but rather than continue working with this solution, let’s look at existing art and see if there are even better tricks we can use.

Using XHook / XDomain / S3 Hook

While the above method of breaking S3’s CORS works and does a good job of explaining why the whole thing is silly to begin with, it’s technically possible to do something even more general and clever.

Ultimately, the only thing that actually needs to run in the iframe is the specific XMLHttpRequests which would otherwise be blocked by CORS.

Jaime Pillora, in 2013, created a series of projects to handle this very problem at the XMLHttpRequest layer. These projects are XHook, XDomain, and S3 Hook. In fact, his S3 Hook example is suspiciously similar to the example I’ve been using (but much more fleshed out).

Unfortunately, it’s hacky in its own way. Sure, the proxy implementation can be quite generic, but XHook accomplishes this by attempting to implement the full XMLHttpRequests specifications, which has been a recipe for missing edge cases.

What this means in practice is that to convert my above example to use XDomain, I had to spend significant time debugging an issue with it, and I still don’t fully understand the fix I eventually stumbled upon.

With the afore-mentioned patch to XHook, it’s possible to rewrite our original example as:

https://s3.amazonaws.com/..../proxy.html:

<script src="https://s3.amazonaws.com/euank-com-examples/cors-pfff/v3/xdomain.min.js" master="*"></script>

https://euank.com/.../bucket_lister.html:

...
<script src="https://s3.amazonaws.com/euank-com-examples/cors-pfff/v3/xdomain.js" slave="https://s3.amazonaws.com/euank-com-examples/cors-pfff/v3/proxy.html"></script>
<script src="https://sdk.amazonaws.com/js/aws-sdk-2.349.0.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/vue@2.5.17/dist/vue.js"></script>
<script src="./bucket_lister.js"></script>
...

https://euank.com/.../bucket_lister.js:

var app = new Vue({
  el: '#app',
  data: {
    accessKey: '',
    secretKey: '',
    errorText: '',
    // ... other data omitted
  },
  methods: {
    listBuckets: function() {
      // ...
      const creds = new AWS.Credentials({
        accessKeyId: this.accessKey,
        secretAccessKey: this.secretKey,
      });
      AWS.config.update({region: 'us-east-1', credentials: creds, s3ForcePathStyle: true});
      const s3 = new AWS.S3();
      s3.listBuckets().promise()
      .then((data) => {
        this.buckets = data.Buckets;
      })
      .catch((err) => {
        this.errorText = err.toString();
      });
    },
  },
});

You can see this code working here.

Notably, the code in bucket_lister.js making use of the AWS SDK doesn’t have do anything different; the XMLHttpRequests to the proxy’s origin are transparently routed through an iframe to the proxy without the AWS SDK having to know a thing.

Still, I would be a little wary of this hack. It is nearly certain that the fake XMLHttpRequest XHook simulates has differences from the real thing, and changes to the AWS SDK in the future might run into these edge cases.

It is worth noting that this solution, like the previous one, exhibits additional latency due to needing to load an iframe and communicate with it.

Regions

So far I’ve only been using the ‘us-east-1’ region. It’s worth noting that most S3 operations need to go to a regional endpoint, which means you have a different origin against which to break CORS. It turns out CORS circumvention is a regionalized venture :). It’s easy enough to adapt anything above to multiple regions simply by having more buckets.

Concluding Thoughts

The lack of CORS headers on S3’s endpoints does nothing to stop any determined developer. I suspect that the only reason they’re not present to begin with is because when S3 was originally released (in 2006), CORS was not in wide-spread use (added to Firefox in 2008, if you were curious). Once S3 didn’t have CORS headers, it was more difficult to add them – after all, clearly things are working just fine without them, right? It only leads to multiple pages of the AWS SDK docs having to explain the silly-ness and quite a few confused developers.

In practice, S3’s CORS headers should rarely matter since it is usually neither good UX nor a good idea to implement software that needs to access top-level S3 APIs from the browser. However, if you find yourself running into this issue, hopefully this blog post will help you to open an iframe and breeze right through.
